Brain Bee Petrol Emission Kit (AGS688) - POA
Brain Bee (Mahle)
POA - Call 0800 673 034
Our Prices include GST

3, 6 or 12 months deferred payments

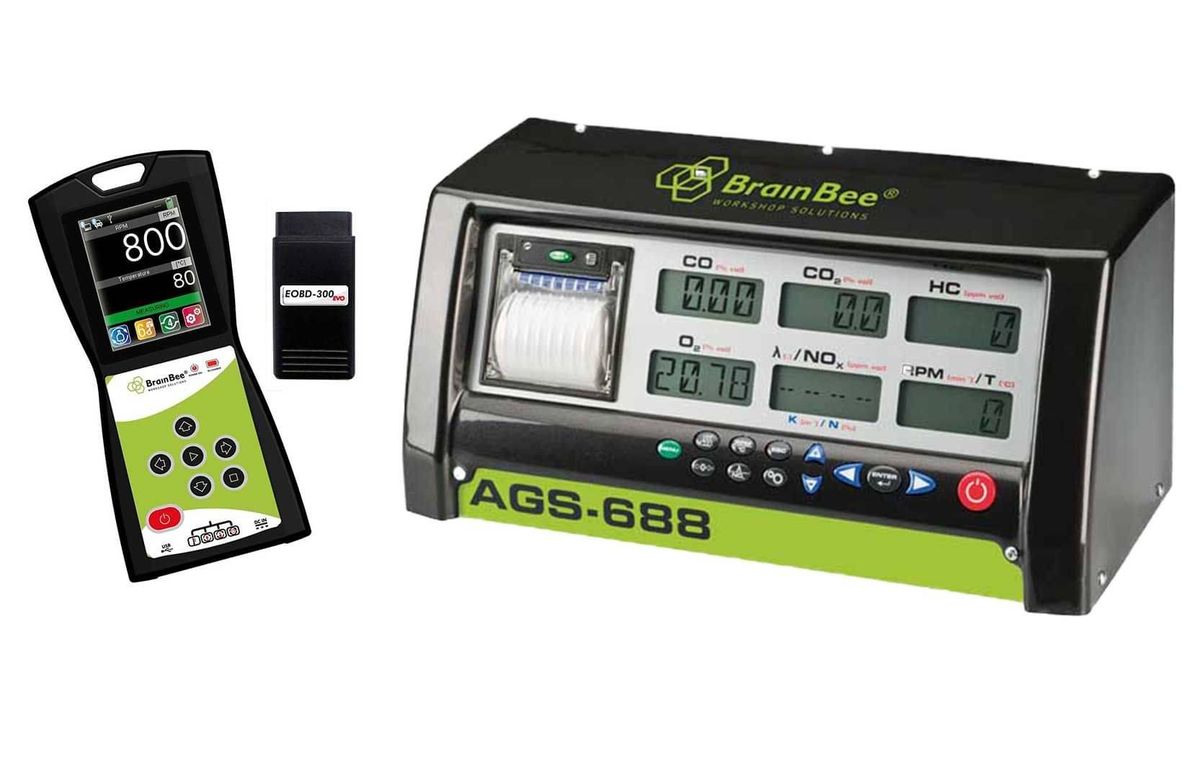

Petrol emissions testing kit with an onboard display. Includes AGS688, MGT300 EVO, Power supply, cables and software to run on an optional laptop.
AGS-688
The AGS-688 gas analyser can work both statically and dynamically, by sampling emissions at the exhaust pipe using the supplied probe designed for this purpose. With the intuitive operator panel, users have all the functions of the exhaust gas analyser at their fingertips, and can easily swap from independent measurements to the legally specified test. The AGS-688 features six backlit LCD units, which display the readings of ongoing tests. When analysis is complete, the user can print out the test result straight away or send it to a connected computer.
MGT-300 EVO
The MGT-300 EVO is BRAIN BEE’S universal rev counter that transmits rev. and temperature to the receiver via bluetooth. On the one hand, it records the revolutions based on the harmonics of the car battery charging signal or via the magnetic vibration sensor. On the other hand, it measures the engine temperature using the standard temperature sensor. The optional EOBD-300 sensor is available for use with cars and lorries.
Universal:
It records the revolutions based on the harmonics of the car battery charging signal or via the magnetic vibration sensor, and the engine temperature via the standard temperature sensor. The built-in rechargeable battery dispenses with the old rev counter’s need for cables to the car battery when using the magnetic vibration sensor. The user-friendly software always provides comprehensive, clearly organised information on the signal quality, current readings, and transmission quality of the signals to the receiver. Thanks to EOBD-300 (optional) the engine speed can also be recorded via OBD interface via Bluetooth.
Signal recording options:
Vibration sensor
Alternator harmonics
EOBD connector (EOBD-300) for speed and temperature
Accessory: SG-030The SG-030 probe (for motorcycle) records rpm differently, via phono-me- tric measurements. Highly precise, it can also be used in particularly difficult situations (ex: on trucks).
