Truck Brake Tester (18 ton) – STT45 with Load Simulation Lift Kit

POA - enquire here

The STT45 split bed brake tester is our heaviest tester capable of 18 Ton axle load. This tester is specifically designed for a pit application and can accommodate the pull down load simulator (not included). Designed in Germany it has the German Nord dual speed 17 KW motors, German electronics, remote control, corundum rollers and is fully hot dip galvanised.

The STT45 will fit directly into the pit of the most common Truck brake tester and is NZTA COF approved.

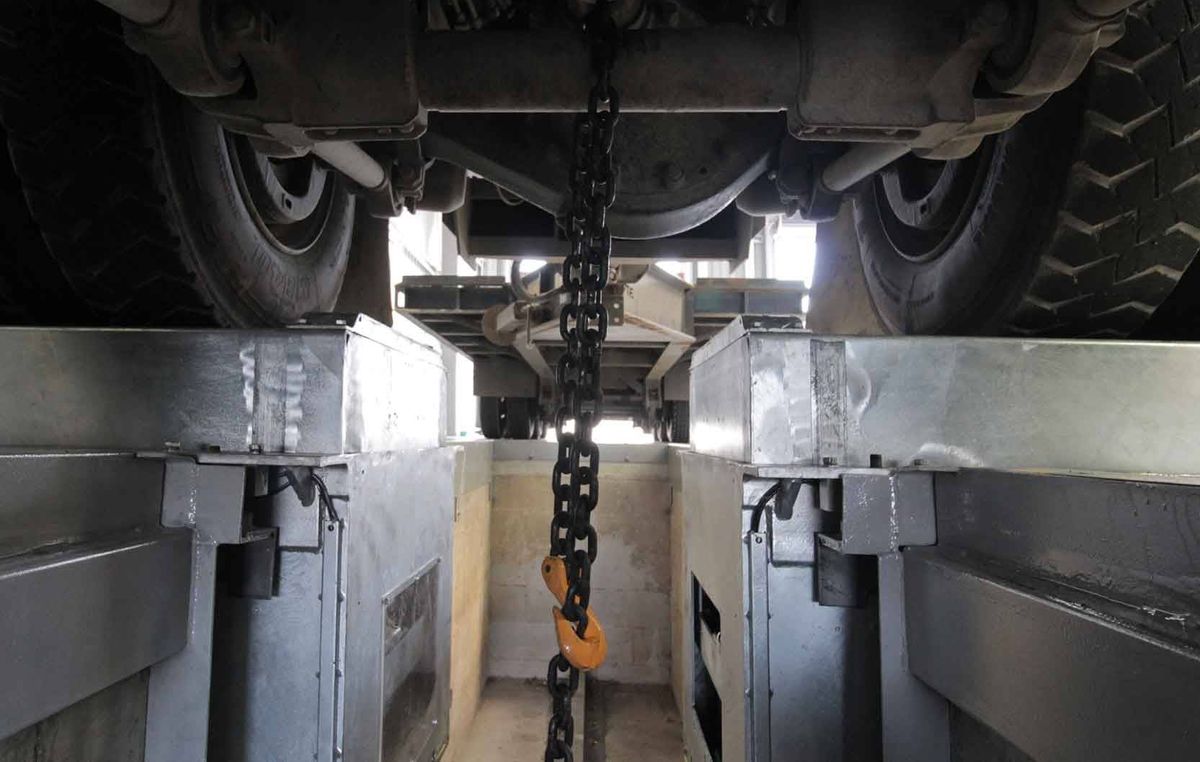

The STT45  is specifically for a pit application where a single operator with the included remote, can use the lift bed load simulator on demand (pit rail optional extra).

18,000kg Axle Load
40kn per wheel brake force
0-40kn measure range
4wd brake testing capability *optional
1000-3000mm, 1100-3100mm and 1200-3200mm track width options
248 x 1000mm rollers
>0.7 / 0.6 coef. friction (dry/wet)
Locking rollers for easy exit
NZTA COF approved
Reliable software and imagery with accurate and repeatable test results

BROCHURE
